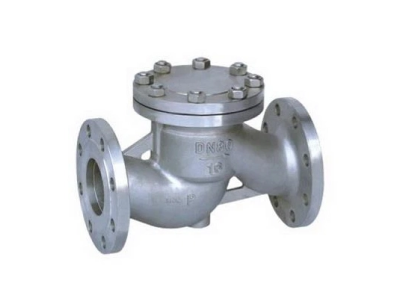

10 Check Valve
-
10 Check Valve
The 10 check valve is an important flow control device used to prevent backflow in pipelines with a nominal pipe size (NPS) of 10 inches. When reverse flow occurs, it automatically shuts off, ensuring unidirectional flow and protecting pumps, compressors, and other critical equipment. 10 inch check valves are used in a wide range of applications including water treatment, oil and gas, chemical processing, power plants, and HVAC systems.
The check valve 10 is available in a variety of configurations, including swing-open, lift-open, butt-clamp, and double-valve. According to the installation requirements, it can be categorized into vertical and horizontal types, adapting to different working environments and application scenarios.
CV 10 Check Valve Specifications
ANSI Class 150lb
ANSI Class 300lb
ANSI Class 600lb
ANSI Class 900lb
NPS
10
10
10
10
(RF/BW)L/L1
622
622
787
838
(RTJ)L2
622
638
790
841
(OPEN)H
815
900
1140
1570
d
250
250
247
238
Do
400
500
600
600
Key Features of 10 Swing Check Valve
Size & Compatibility: Designed for NPS 10 (10-inch) pipelines, suitable for industrial and commercial applications.
Material Options: Available in stainless steel, carbon steel, cast iron, CF3M, CF8M, and more, ensuring durability and corrosion resistance.
Connection Types: Offered in flanged (RF), butt-weld (BW), and threaded connections for versatile installation.
ANSI Pressure Ratings: Available in Class 150, 300, 600, 900, and higher, suitable for different pressure and temperature conditions.
As a valves factory, we will do our best to meet all the needs of customers.
