3.2×2.5mm for Real Time Clock, Portable Instruments, Timing Syn
-

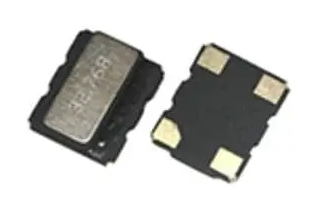

The BT3225 Series is a compact and versatile Temperature-Compensated Crystal Oscillator (tcxo clock) designed for applications requiring high precision and stability in timing and synchronization. Its small size and robust specifications make it suitable for a wide range of industries and devices.
Applications
The BT3225 TCXO is ideal for use in the following applications:
LTE (Long-Term Evolution): Provides stable timing for high-speed mobile communication networks.
BTS (Base Transceiver Station): Ensures precise synchronization for cellular base stations.
CATV (Cable Television): Maintains accurate timing for signal distribution in cable TV systems.
LAN (Local Area Network): Supports reliable network synchronization in wired and wireless LANs.
GPS Tracking: Delivers precise timing for GPS receivers, ensuring accurate location tracking.
Test & Measurement Equipment: Provides stable clock signals for high-precision instruments and measurement systems.
Real-Time Clock (RTC): Ensures accurate timekeeping in portable and embedded systems.
Portable Instruments: Compact size and low power consumption make it ideal for portable devices.
Timing Synchronization: Critical for systems requiring precise timing coordination.
Specifications
Series: BT3225
Size: 3.2 × 2.5 mm
Compact form factor suitable for space-constrained designs.
Output Waveform: LVCMOS
Low Voltage CMOS output ensures compatibility with modern digital systems.
Supply Voltage Options:
1.8V, 2.5V, 3.0V, 3.3V, 5.0V
Wide range of supply voltages for flexibility in different systems.
Operating Temperature:
Standard: -20°C to 70°C
Extended: -40°C to 85°C
Customizable temperature ranges available for specific applications.
Stability:
Typically offers high frequency stability over temperature variations, ensuring reliable performance in critical applications.
Key Features
Compact Size: The 3.2 × 2.5 mm package is ideal for portable and space-constrained devices.
Wide Voltage Range: Supports multiple supply voltages, making it versatile for various systems.
Temperature Range: Operates reliably in both standard and extended temperature environments, with customization options for specific needs.
LVCMOS Output: Ensures compatibility with modern digital circuits and systems.
High Precision: As a TCXO, it provides excellent frequency stability, making it suitable for timing-critical applications.
Conclusion
The BT3225 TCXO is a high-performance, compact oscillator designed for applications requiring precise timing and synchronization. Its small size, wide voltage range, and customizable temperature options make it a versatile choice for industries such as telecommunications, networking, GPS, and test equipment.
