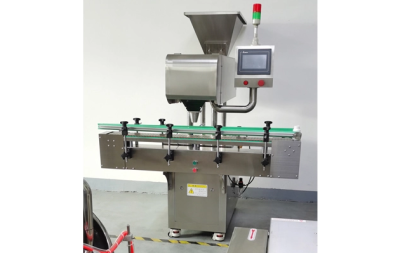

Automatic Candy Bottle Counting Machine
-
Automatic Candy Bottle Counting Machine
Sinotech bottle counting filling machines are widely used for food industry and pharmaceutical industry. We, a leading pharma machine supplier, support customers to customize the counting filling machines according to different requirements. Customize for different shape and size bottles, different shape filling products and different production speed. Fully automtic control and stable working for a long time.
Advantages of Automatic Candy Counting Machine
1. Wide applicability, used for tablets (including abnormal tablets), capsules, gels (including abnormal gels, transparent gels and opaque gels) pills and most solid granules.
2. 24 tunnels vibration feeding, special patent filling part, feeding evenly, no breakage of the material.
3. Anti-dust, using our own original high anti-dust sensor technology, the machine works accurately with good stability in heavy dust conditions.
4. Count accurate: photoelectric sensor automatic counting and bottling error is less than the national standard.
5. Hopper mouth of the special structure, to prevent the materials jam, small mouth bottle can quickly bottling. (Optional）
6. High-degree of automatic, no bottle will not count and fill. Automatically remove bottles of filling abnormalities and a certain size broken tablets. Self-diagnose errors and stop working to make alarm at errors.
7. Supporting functions: lack of bottle of photoelectric sensor automatically detection, automatically stop.
8. Easy to operate: Using intelligent design, in Chinese or Chinese-English menu, various operation parameters according to the need to set, can store 10 groups set parameters, in order to use.
9. Easy to Maintenance, workers can work with simple training, easy to remove、clean, change parts, and no need tools.
10. Sealing dust proof, with dust-remove box, reduce dust pollution.（Optional）
Outstand Features of Automatic Candy Bottle Counting Machine
Control
Comply with GMP standard, high speed, high precision, fully automatic control, good packaging quality, a wide range of application, save materials and cost, environmental protection.
Specifications of Automatic Candy Bottle Counting Machine
Suitable bottle
100~500ml Round, Square Bottles
Counting objects
Φ0~5#capsule、soft capsule、Φ5.5～12compressed tablet、special-shaped tablet、sugarcoated tablet，Φ3～12pill
Capacity
10~30bottles/min (Based on filling volume, filling quantity and tablet size)
Filling volume
10~9999 granules each bottle
Channel
8
Power supply
AC220V 50Hz 0.6kw
Filling precision
>99.5% Over industry standard
Air supply pressure
0.6Mpa
Overall dimensions
1400×1500×1550mm
Weight
120kg
