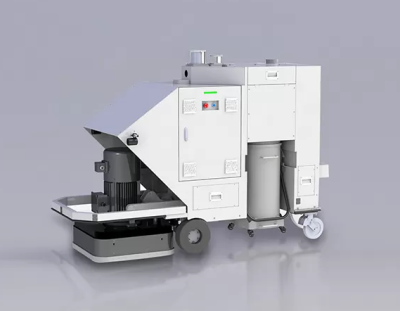

Floor Grinding Robot
-
Floor Grinding Robot
Dimension
2450*960*1750mm
Weight
1250kg
Dust Collection Bin
100L
Power Supply
Plug-in Work
Grinding Width
780mm
Grinding Speed
0.1-0.5m/s
Working Voltage
AC380V
Rotated Power
25kw
Operation Configuration
1 Robot+1 Worker
Fully Unmanned Operation
Suitable for Concrete Hardener Flooring, Dry Shake Hardener Flooring, and Epoxy Flooring in underground parking garages, factory workshops, laboratories, sports venues, and more, this concrete grinding machine, floor grinding machine performs fully automated grinding and dust collection with the assistance of a single operator.
One robot works with one worker; the robot performs fully automated grinding and dust collection.
Grinding quality is superior to manual work; coverage rate exceeds 95%; efficiency ranges from 800-1000㎡/day (rough grinding) to 3000-4000㎡/day (polishing).
Three Core Advantages
Dust Collection System
Equipped with an automatic dust collection system, featuring a 100L high-capacity dust bin to hold more debris and reduce replacement frequency. The quick-release mechanism allows for one-button loading and unloading, making maintenance fast and easy.
01
Preloaded Downforce Design
Utilizes a heavy self-weight and preloaded downforce design to minimize gaps between contact surfaces, enhance structural rigidity, and improve overall system stability and reliability—resulting in better grinding quality.
02
Compatible Grinding Discs
Supports quick-swap interfaces for both square and round grinding discs, offering greater versatility across different application scenarios.
Six Key Features
Superior Grinding Quality
Thanks to the robot's heavy self-weight and preloaded downforce design, rigidity is enhanced, and structural stability and reliability are improved—resulting in consistently high grinding quality.
High Coverage Rate
The robot autonomously analyzes the environment and plans optimal grinding paths. It intelligently detects features like columns and fire hydrants, using a wraparound grinding strategy that ensures precise coverage with no over-grinding or missed spots. Coverage rate exceeds 95%.
High Grinding Efficiency
Combining a large grinding disc with long battery life, the robot achieves an efficiency of 800–1,000 m²/day for initial grinding and 3,000–4,000 m²/day for polishing. Equipped with an automated dust collection and quick-release system, it offers high performance with excellent environmental protection.
Comprehensive Safety System
Equipped with an intelligent dual-protection system (active alerts + passive safeguards), the robot continuously monitors operational status to ensure zero-risk performance. It has maintained a flawless safety record since launch.
Intelligent & User-Friendly Operation
Controlled via a tablet with a visualized UI , the system is intuitive and easy to operate. Ordinary workers can become proficient after training.
Ultra-Low Failure Rate & Worry-Free support
The floor grinder is highly reliable and stable in operation, backed by a responsive professional support team that provides quick assistance and comprehensive service coverage for every site.
We can provide kinds of robot drywall finishing for sale, anything you need, please contact us.
If you want to know more kinds of concrete surface grinder, please visit our website.
Legend Robot operates a complete value chain—from R&D to manufacturing, training, and after-sales service—empowering robots for construction work and construction site robots to perform efficiently while preserving worker craftsmanship. As a leading solution in robotic construction, the robots for construction industry integrates digital intelligence and practical expertise, driving the construction industry's transformation and shaping a safer, more productive future.
