Non-asbestos Composite Gasket Sheet
-
Non-asbestos Composite Gasket Sheet

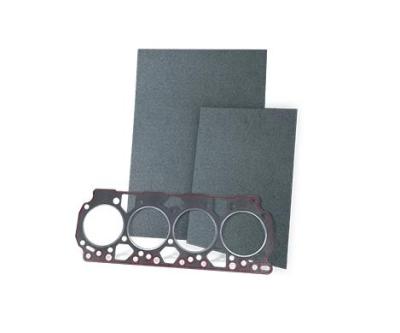

Non-asbestos composite seal gasket sheet is made of non-asbestos beater sheet reinforced with tanged steel. The asbestos-free gasket sheet has an excellent performance in dilatability, sealing equality, high-temperature resistance, and long life, etc., Mainly applied in automobile farming machines, motorcycles, engineering, etc., it is always used in high-strength gaskets and cylinder gaskets, etc.
Area of Applications：
Non-asbestos Cylinder Head Facing (CHF) applications. Good for sealing all sorts of lubrication oils, fuels, and combustion engine-related mediums。
Characteristics：
Environmental friendly material, Elastomeric binders, with good corrosion resistance, heat insulation, and sound insulation properties.
Temperature Recommended≤ 350 ℃
Thickness：
1.0-2.0mm, Other thicknesses of composite gasket material can be supplied upon requested
Specifications of Non-asbestos Composite Gasket Sheet
Properties
Unit
Standards
Test Method
Density
g/cm3
2.3±0.3
ASTM F1315
Compressibility（34.5MPa）
%
≥ 10
ASTM F36
Recovery
%
≥ 35
ASTM F36
Immersion: #903 Oil (150℃, 5hrs (150±2）
Weight change
%
≤ 30
ASTM F146
Thick change
%
≤ 20
Immersion Test,
Weight change
%
≤ 30
ASTM F146
Fuel B（21-30 ℃
×5h）
Thick change
%
≤ 20
If you want to know more types of seal composites, please visit our website.
As one of gasket sheet manufacturers, we will do our best to meet all the needs of customers.
