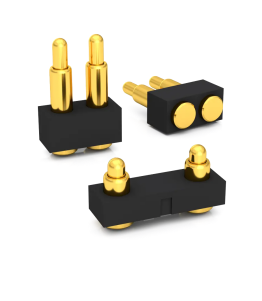

Vertical SMD Pogo Pin Connector
-
Innovative design: Slope Structure Design, More Stable Contact, Lower Resistance
Installation method: SMT Surface Mount (SMD) Reflow Soldering or Placement by Insertion Machine
Contact Resistance: 30 milliohms Max.
Rated Current: 2A~15A (Continuous Current)
Rated Voltage：36V AC/DC
Durability: 10,000~100,000 Times (Reciprocating Motion Lifespan)
Operating Temperature: -40°C to +120°C (Continuous Temperature)
Salt Spray Resistance 96 Hours Corrosion Test
High-Precision Mold And Parts Processing
A variety of standards are available, and samples will be sent out as soon as the same day.
Provide Customized Services
Comply With EU RoHS And Reach Standards
Product Details
SMD Pogo Vertical Pin Connectors, also known as SMD Pogo Pin Connectors, Pogo Pin connectors, or Surface Mount Spring-Loaded Connectors, are component connectors used to connect conductive or signal paths on a circuit board.
The Vertical SMD Pogo Pin Connector mainly consists of two core components: the Pogo Pin and the housing, which are assembled using precision molds and specialized equipment. The Pogo Pin features an inclined plane structure design internally, which, during operation, generates a lateral force through contact with the spring on the inclined plane, ensuring that the pinhead maintains stable contact with the inner wall of the pin tube. This design allows the electrical current to primarily pass through the gold-plated Plunger and Body, thereby achieving stable and extremely low contact resistance, ensuring a stable and reliable connection even with frequent mating and unmating.
The installation method for the Rtench Vertical SMD Pogo Pin Connector uses SMT (Surface Mount Technology) automatic pick-and-place reflow soldering technique.
This process includes the following steps:
1. An SMT automatic pick-and-place machine places the Vertical SMD Pogo Pin Connector onto a PCB (Printed Circuit Board) that has been printed with solder paste.
2. The assembly is then heated using a reflow soldering process, which melts the solder paste and, upon cooling, solidifies, thereby completing the permanent connection between the connector and the PCB pads.
This installation method is fast, highly precise, and highly automated, significantly enhancing production efficiency and product quality.
Material & Parts
The Vertical SMD Pogo Pin Connector is a type of Pogo Pin connector that is manufactured based on an inclined plane structural design, incorporating an internal spring mechanism. It primarily consists of two core components: the Pogo Pin and the housing. Its main characteristic is vertical contact, with flat solder legs, typically mounted on the surface of PCB pads using the SMT reflow soldering process.
vertical SMD pogo pin connector material
The vacuum blind hole electroplating technology is known for its superior performance, capable of quickly and accurately electroplating a layer of gold inside and outside extremely fine blind holes. This excellent electroplating process not only ensures the overall aesthetics of the metal surface but also has outstanding corrosion resistance and wear resistance. Both the inside and the outside of the hole present a bright golden color, and there will be no peeling or gold dropping issues.
vertical SMD pogo pin connector sample
By combining mature design concepts, high-precision processing techniques, and excellent vacuum blind hole electroplating technology, we can achieve extremely low and stable contact resistance.
vertical SMD pogo pin connector design
Standard Product
As one of pogo pin suppliers, we will do our best to meet all the needs of customers.
