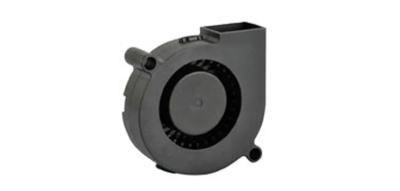

DFX5015 Narrow Mouthed DC Blower Fan

• Posted by coolingf an October 13, 2025 Filed in Arts & Culture 30 views
  click to rate

  Specifications of DFX5015 Narrow Mouthed DC Blower Fan

  Listed

  Rated

  Operating

  Rated Current

  Rated Speed

  Air

  Static

  Noise

  Available Features (Optional)

  Weight

  Model

  Voltage

  Voltage

  Flow

  pressure

  Level

  （VDC）

  （VDC）

  （A）

  （RPM）

  （CFM）

  (mmH2O)

  (dBA)

  g

  Tachometer

  Rotation

  Thermal

  Pulse Width

  Output

  Detector

  Control

  Modulation

  DFX501505H

  5

  3.5~5.75

  0.35

  4,500

  3.20

  11.90

  37.80

  ◆

  ◆

  ◆

  22

  DFX501505M

  3.5~5.75

  0.25

  4,000

  2.80

  9.40

  34.70

  ◆

  ◆

  ◆

  DFX501505L

  3.5~5.75

  0.15

  3,000

  2.10

  5.30

  27.20

  ◆

  ◆

  ◆

  DFX501512H

  12

  6.0~13.8

  0.25

  5,500

  3.90

  17.80

  37.80

  ◆

  ◆

  ◆

  DFX501512M

  6.0~13.8

  0.15

  4,500

  3.20

  11.90

  34.70

  ◆

  ◆

  ◆

  DFX501512L

  6.0~13.8

  0.10

  3,500

  2.50

  7.20

  27.20

  ◆

  ◆

  ◆

  DFX501524H

  24

  12.0~27.6

  0.15

  5,500

  3.90

  17.80

  37.80

  ◆

  ◆

  ◆

  DFX501524M

  12.0~27.6

  0.10

  4,500

  3.20

  11.90

  34.70

  ◆

  ◆

  ◆

  DFX501524L

  12.0~27.6

  0.06

  3,500

  2.50

  7.20

  27.20

  ◆

  ◆

  ◆

  X=S: Sleeve Bearing or B: Ball Bearing or H: Hydro Bearing; Specifications are subject to change without notice



  Description of DFX5015 Narrow Mouthed DC 5015 Blower Fan 24V

  Frame: PBT OF UL 94V-0



  Impeller: PBT OF UL 94V-0



  Bearing Type: Sleeve Bearing / Ball Bearing / Hydro Bearing



  Lead Wires: UL Type or Equivalent ( + ) : Red ( - ) : Black



  Motor Protection: Reverse Polarity Protected; Automatic Restart



  Operating Temperature and Humidity: -10℃～70℃,5%～90%RH



  Storage Temperature and Humidity: -40℃～80℃,5%～95%RH



  With a strong emphasis on OEM and ODM, Xie Heng Da've been dedicated to producing wholesale 50mm blower fan for over 17 years.
