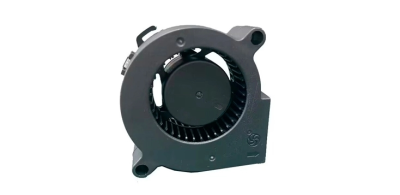

DFX5020 Narrow Mouthed ZM DC Blower Fan

• Posted by coolingf an October 13, 2025 Filed in Arts & Culture 34 views
  click to rate



  Specifications of DFX5020 Narrow Mouthed ZM DC 5020 Blower Fan

  Listed Model	Rated Voltage	Operating Voltage	Rated Current	Rated Speed	Air Flow	Static pressure	Noise Level	Available Features (Optional)				Weight
  	（VDC）	（VDC）	（A）	（RPM）	（CFM）	(mmH2O)	(dBA)	Tachometer Output	Rotation Detector	Thermal Control	Pulse Width Modulation	g
  DFX502005D	5	3.5~5.75	0.45	5,500	6.20	14.60	34.30	◆	◆	◆	◆	30
  DFX502005H		3.5~5.75	0.30	4,500	5.10	9.80	29.10	◆	◆	◆	◆
  DFX502005M		3.5~5.75	0.20	3,500	4.00	6.00	22.60	◆	◆	◆	◆
  DFX502005L		3.5~5.75	0.15	2,500	2.90	3.00	13.80	◆	◆	◆	◆
  DFX502012D	12	6.0~13.8	0.30	5,500	6.20	14.60	34.30	◆	◆	◆	◆
  DFX502012H		6.0~13.8	0.20	4,500	5.10	9.80	29.10	◆	◆	◆	◆
  DFX502012M		6.0~13.8	0.15	3,500	4.00	6.00	22.60	◆	◆	◆	◆
  DFX502012L		6.0~13.8	0.10	2,500	2.90	3.00	13.80	◆	◆	◆	◆
  DFX502024D	24	12.0~27.6	0.20	5,500	6.20	14.60	34.30	◆	◆	◆	◆
  DFX502024H		12.0~27.6	0.15	4,500	5.10	9.80	29.10	◆	◆	◆	◆
  DFX502024M		12.0~27.6	0.10	3,500	4.00	6.00	22.60	◆	◆	◆	◆
  DFX502024L		12.0~27.6	0.06	2,500	2.90	3.00	13.80	◆	◆	◆	◆
  X=S: Sleeve Bearing or B: Ball Bearing or H: Hydro Bearing; Specifications are subject to change without notice
