DFX6010 DC Axial Fan

• Posted by coolingf an December 22, 2025 Filed in Business #60mm 5v fan  15 views
  click to rate

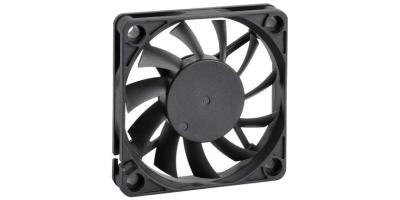

  DFX6010 industrial 60mm DC axial cooling fans are designed to create large airflow.



  Specifications of DFX6010 60mm DC Axial Cooling Fan

  Listed Rated Operating Rated Current Rated Speed Air Static Noise Available Features (Optional) Weight

  Model Voltage Voltage Flow pressure Level

  （VDC） （VDC） （A） （RPM） （CFM） (mmH2O) (dBA) g

  Tachometer Rotation Thermal Pulse Width

  Output Detector Control Modulation

  DFX601005H 5 3.5~5.75 0.40 4,200 16.80 2.30 34.10 ◆ ◆ ◆ ◆ 24

  DFX601005M 3.5~5.75 0.30 3,600 14.40 1.60 30.10 ◆ ◆ ◆ ◆

  DFX601005L 3.5~5.75 0.20 3,000 12.00 1.10 25.40 ◆ ◆ ◆ ◆

  DFX601012H 12 6.0~13.8 0.25 4,200 16.80 2.30 34.10 ◆ ◆ ◆ ◆

  DFX601012M 6.0~13.8 0.15 3,600 14.40 1.60 30.10 ◆ ◆ ◆ ◆

  DFX601012L 6.0~13.8 0.10 3,000 12.00 1.10 25.40 ◆ ◆ ◆ ◆

  DFX601024H 24 12.0~27.6 0.15 4,200 16.80 2.30 34.10 ◆ ◆ ◆ ◆

  DFX601024M 12.0~27.6 0.10 3,600 14.40 1.60 30.10 ◆ ◆ ◆ ◆

  DFX601024L 12.0~27.6 0.08 3,000 12.00 1.10 25.40 ◆ ◆ ◆ ◆

  X=S: Sleeve Bearing or B: Ball Bearing or H: Hydro Bearing; Specifications are subject to change without notice

  Description of DFX6010 60mm DC Axial Cooling Fan



  Frame: PBT OF UL 94V-0



  Impeller: PBT OF UL 94V-0



  Bearing Type: Sleeve Bearing / Ball Bearing / Hydro Bearing



  Lead Wires: UL Type or Equivalent ( + ) : Red ( - ) : Black



  Motor Protection: Reverse Polarity Protected; Automatic Restart



  Operating Temperature and Humidity: -10℃～70℃,5%～90%RH



  Storage Temperature and Humidity: -40℃～80℃,5%～95%RH



  Industrial design, mold development, electric engineering are the core components of Xie Heng Da 60mm dc fan.
