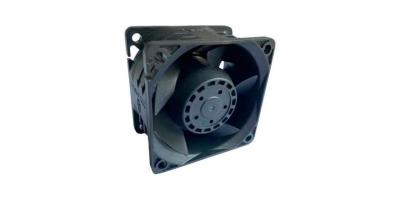

  Small size ventilation 60mm DC axial cooling booster fan with square shape, 100% inspection of semi-finished products.



  Specifications of DFX6038 60mm DC Axial Cooling Booster Fan

  Listed

  Model Rated

  Voltage Operating

  Voltage Rated Current Rated Speed Air

  Flow Static

  pressure Noise

  Level Available Features (Optional) Weight



  （VDC） （VDC） （A） （RPM） （CFM） (mmH₂O) (dBA) Tachometer

  Output Rotation

  Detector Thermal

  Control Pulse Width

  Modulation g

  DFX603812U 12 6.0~13.8 2.20 15,000 68.20 73.80 64.80 ◆ ◆ ◆ ◆ 120

  DFX603812D 6.0~13.8 1.20 12,000 54.50 47.30 59.00 ◆ ◆ ◆ ◆

  DFX603812H 6.0~13.8 0.60 9,000 40.90 26.60 51.50 ◆ ◆ ◆ ◆

  DFX603812M 6.0~13.8 0.40 6,000 27.30 11.80 40.90 ◆ ◆ ◆ ◆

  DFX603824U 24 12.0~27.6 1.20 16,000 72.70 84.00 66.50 ◆ ◆ ◆ ◆

  DFX603824D 12.0~27.6 0.60 12,000 54.50 47.30 59.00 ◆ ◆ ◆ ◆

  DFX603824H 12.0~27.6 0.30 9,000 40.90 26.60 51.50 ◆ ◆ ◆ ◆

  DFX603824M 12.0~27.6 0.15 6,000 27.30 11.80 40.90 ◆ ◆ ◆ ◆

  DFX603848U 48 28.0~56.0 0.60 16,000 72.70 84.00 66.50 ◆ ◆ ◆ ◆

  DFX603848D 28.0~56.0 0.30 12,000 54.50 47.30 59.00 ◆ ◆ ◆ ◆

  DFX603848H 28.0~56.0 0.20 9,000 40.90 26.60 51.50 ◆ ◆ ◆ ◆

  DFX603848M 28.0~56.0 0.10 6,000 27.30 11.80 40.90 ◆ ◆ ◆ ◆

  X=S: Sleeve Bearing or B: Ball Bearing or H: Hydro Bearing; Specifications are subject to change without notice

  Description of DFX6038 60mm DC Axial Cooling Booster Fan



  Frame: PBT OF UL 94V-0



  Impeller: PBT OF UL 94V-0



  Bearing Type: Sleeve Bearing & Ball Bearing



  Lead Wires: UL Type or Equivalent ( + ): Red ( - ): Black



  Motor Protection: Reverse Polarity Protected; Automatic Restart



  Operating Temperature and Humidity: -10℃～70℃, 5%～90%RH



  Storage Temperature and Humidity: -40℃～80℃, 5%～95%RH



  Fan Performance Curve

  Dimensions

  Xie Heng Da axial cooling fan factory provide 60mm dc fan, effective cooling and optimized airflow solutions.
