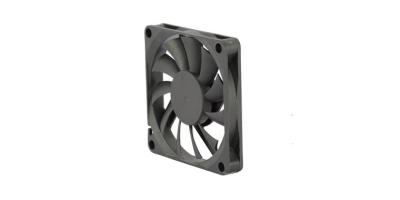

DFX7010 DC Axial Fan

• Posted by coolingf an December 22, 2025 Filed in Business #70mm 12v fan  23 views
  click to rate



  Portable dc axial flow fans, long working time cooling fans

  Specifications of DFX7010 DC Axial Fan

  Listed Rated Operating Rated Current Rated Speed Air Static Noise Available Features (Optional) Weight

  Model Voltage Voltage Flow pressure Level

  （VDC） （VDC） （A） （RPM） （CFM） (mmH2O) (dBA) g

  Tachometer Rotation Thermal Pulse Width

  Output Detector Control Modulation

  DFX701005H 5 3.5~5.75 0.30 3,500 17.20 2.20 28.10 ◆ ◆ ◆ ◆ 28

  DFX701005M 3.5~5.75 0.20 3,000 14.70 1.60 24.10 ◆ ◆ ◆ ◆

  DFX701005L 3.5~5.75 0.12 2,500 12.30 1.10 19.40 ◆ ◆ ◆ ◆

  DFX701012H 12 6.0~13.8 0.25 4,000 19.70 2.90 31.60 ◆ ◆ ◆ ◆

  DFX701012M 6.0~13.8 0.17 3,500 17.20 2.20 28.10 ◆ ◆ ◆ ◆

  DFX701012L 6.0~13.8 0.10 3,000 14.70 1.60 24.10 ◆ ◆ ◆ ◆

  X=S: Sleeve Bearing or B: Ball Bearing or H: Hydro Bearing; Specifications are subject to change without notice

  Description of DFX7010 DC Axial Fan

  Frame: PBT OF UL 94V-0



  Impeller: PBT OF UL 94V-0



  Bearing Type: Sleeve Bearing &  Ball Bearing& Hydro Bearing



  Lead Wires: UL Type or Equivalent ( + ) : Red ( - ) : Black



  Motor Protection: Reverse Polarity Protected;  Automatic Restart



  Operating Temperature and Humidity: -10℃～70℃,5%～90%RH



  Storage Temperature and Humidity: -40℃～80℃,5%～95%RH



  For custom 70mm cooling fan, you can send your specific requirements to our team.
