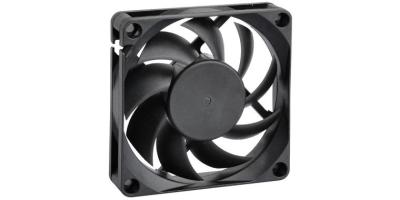

DFX7015 DC Axial Fan

• Posted by coolingf an December 22, 2025 Filed in Business #70mm silent fan  29 views
  click to rate





  Extractor Fans in Xie Heng Da, best static pressure fans factory

  Specifications of DFX7015 DC Axial Fan

  Listed

  Model Rated

  Voltage Operating

  Voltage Rated Current Rated Speed Air

  Flow Static

  pressure Noise

  Level Available Features (Optional) Weight



  (VDC） (VDC） (A） (RPM） (CFM） (mmH₂O) (dBA) Tachometer

  Output Rotation

  Detector Thermal

  Control Pulse Width

  Modulation g

  DFX701505L 5 3.5~5.75 0.30 2,000 11.20 0.80 16.30 ◆ ◆ ◆ ◆ 47

  DFX701512H 12 6.0~13.8 0.35 4,500 25.30 4.20 37.50 ◆ ◆ ◆ ◆

  DFX701512M 6.0~13.8 0.25 4,000 22.50 3.20 34.40 ◆ ◆ ◆ ◆

  DFX701512L 6.0~13.8 0.15 3,000 16.80 1.90 26.90 ◆ ◆ ◆ ◆

  DFX701524H 24 12.0~27.6 0.20 4,500 25.30 4.20 37.50 ◆ ◆ ◆ ◆

  DFX701524M 12.0~27.6 0.16 4,000 22.50 3.20 34.40 ◆ ◆ ◆ ◆

  DFX701524L 12.0~27.6 0.12 3,000 16.80 1.90 26.90 ◆ ◆ ◆ ◆

  X=S: Sleeve Bearing or B: Ball Bearing or H: Hydro Bearing; Specifications are subject to change without notice

  Description of DFX7015 DC Axial Fan

  Frame: PBT OF UL 94V-0



  Impeller: PBT OF UL 94V-0



  Bearing Type: Sleeve Bearing / Ball Bearing / Hydro Bearing



  Lead Wires: UL Type or Equivalent ( + ) : Red ( - ) : Black



  Motor Protection: Reverse Polarity Protected; Automatic Restart



  Operating Temperature and Humidity:-10℃～70℃, 5%～90%RH



  Storage Temperature and Humidity: -40℃～80℃, 5%～95%RH



  Fan Performance Curve



  Dimensions (Unit: mm)



  For custom 70mm cooling fan, you can send your specific requirements to our team.
