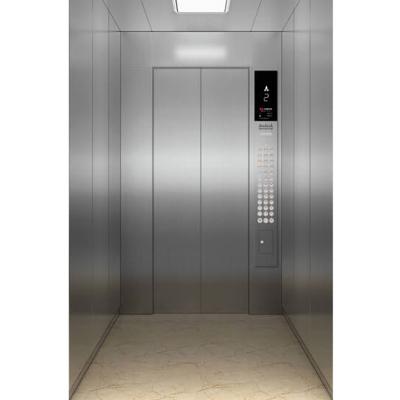

METIS-CR Passenger Elevators

• Posted by ifeelevator com June 10, 2025 Filed in Business #automatic passenger lift  13 views
  click to rate

  Metis-CR1 acquired VDI 4707 PART 1 highest grade A certification certified by the German TüV energy-efficiency testing so winning a large number of high-standard customers and industry appreciation in the Chinese market.



  Feature Of METIS-CR automatic passenger lift



  Human technology for safe arrival.



  Comfortable experience with low energy consumption.



  Optional configuration.



  Specification Of METIS-CR automatic passenger elevator

  NO. Specification 545(8P) 615(9P) 685(10P) 750(11P) 820(12P) 885(13P) 955(14P) 1025(15P) 1160(17人/P) 1295(19人/P)

  1 Capacity (kg) 545 615 685 750 820 885 955 1025 1160 1295

  2 Speed (m/s) 1 1.5 1.75 1 1.5 1.75 1 1.5 1.75 1 1.5 1.75 1 1.5 1.75 2 1 1.5 1.75 2 2.5 1 1.5 1.75 2 2.5 1.5 1.75 1 1.5 1.75 1 1.5 1.75 2 2.5 1 1.5 1.75 2 2.5

  3 Operation System full collective selection operation

  4 Driving System VVVF

  5 Door Operator System VVVF

  6 Traction Machine Permanent Magnet Synchronous Gearless type

  7 Control System CTRL71

  8 Parallel Elevators 2 units

  9 Group Control Elevators 3-8 units

  10 Wide Car Car Dimension mm

  width*depth 1400*1050 1350*1200 1400*1250 1400*1350 1500*1350 1500*1400 - 1600*1550 1800*1500 1800*1650



  Shaft Size mm

  W*H 2100*1700 2050*1850 2100*1900 2100*2000 2200*2000 2200*2050 - 2300*2200 2500*2200 2600*2350



  11 Deep Car Car Dimension mm

  width*depth - - - 1150*1650 1250*1650 1300*1650 1100*2100 1200*2100 1300*2100 1400*2150



  Shaft Size mm

  W*H - - - 2050*2050 2100*2050 2150*2050 2000*2500 2250*2500 2400*2500 2600*2550



  IFE elevators, as an excellent elevators manufacturer, offers different types of escalators for you to choose from.
