Dry Ball Mill
-
Dry ball mill is suitable for all kinds of metal and nonmetal ores, including materials that will react with water, such as cement, marble, and other building stones, or products that require storage and sales in the form of powder. In addition,among all ball grinding machine, if the concentrator is located in an arid area and water resources are scarce, dry grinding ball mill can be used for water saving.
Advantages of Dry Grinding Ball Mill
Dry ball mill need less water, which greatly saves water consumption compared with wet ball mill.
The material produced by dry ball mill is the finished product.
The efficiency of dry ball mill is higher.
Available for cement ball mill.
Advantages of Dry Grinding Ball Mill
Working Principle of Dry Ball Mill
The dry grinding ball mill is a horizontal cylindrical rotating device, which is driven by outer gear. It is divided into lattice type dry ball mill and multi-bin type dry ball mill. The material enters into the front bin of the mill through the feeding device, and the hollow shaft screw evenly enters into the front bin of the mill. There are stepped lining plates or corrugated lining plates in the bin, which are filled with steel balls of different specifications. The rotation of the cylinder generates centrifugal force to bring the steel balls to a certain height and then fall down, which has a heavy impact and grinding effect on the material. After rough grinding in the front bin, the materials enter the second bin through a single-layer partition board. The bin is inlaid with a flat lining board and steel balls to further grind the materials. The powder is discharged through the discharging grate plate to complete the industrial grinding mill operation.
Main Structure of Dry Ball Mill
Feeding screw for feeding raw material.
The shell is equipped with a manhole for maintenance and replacement of the inner liner.
Discharge part for ball mill to discharge qualified products.
Main bearing.
Transmission part.
Operation and Maintenance of Dry Ball Mill

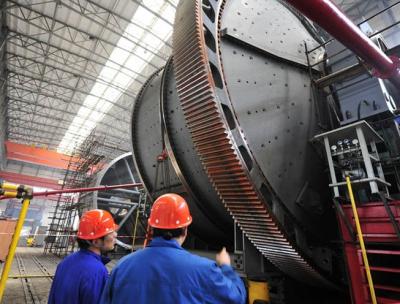

Before the ball mill is started, check whether the connecting bolts are tightened, including gears, couplings, etc. Check whether the oil tank and reducer have enough quantity; Whether the whole lubricating device and instrument are defective and whether the pipeline is smooth. Finally, check whether there are any sundries around the ball mill and classifier. Only if everything is clear can we get the ball mill to work.
Intelligent Grinding Expert System Ball Mill
To realize the intelligent control for ball mill operation, we provide the intelligent grinding expert system. It will monitor the situation of ball mill working and the finished products status. Lower the labour cost with great efficient. Learn More...
Technical Parameters of Dry Ball Mill
Specification
Capacity
Rotary Speed
Input Size
Grinding Medium Load
Volume
Motor
Profile Dimensions
(L×W×H)Total Weight
Remarks
m
t/h
r/min
mm
t
M3
Power/kw
Voltage/V
mm
t
φ2.2×6.5
15-16
22
＜20
22
18
320
6000
12.28×5.39×4.21
52
φ2.2×8
30
20.8
＜25
45
560
6000
17.215×5.564×4.54
81
φ2.2×13
29-30
21.5
＜25
60
43
630
6000
26.183×4.54×3.229
118.4
φ2.2×13
24-35
21.5
＜25
60
43
630
6000
26.079×4.54×3.52
113
φ2.2×13
40
18.9
＜25
65
50
800
6000
27.345×6.04×3.62
145
φ3×9
36-42
17.6
＜25
70-80
1000
6000
23.285×5.965×3.878
136.6
φ3×11
60-65
17.4
＜15
90-100
69
1250
6000
28.00×5.72×3.672
180
φ3.2×7+1.8
48-63
18
＜20
55-58
44.5
1000
6000
24.7×5.12×4.23
167.5
φ3.4×7+1.8
54
16.9
＜20
65
51.5
1000
6000
(22.057+a)×5.12×4.23
184.4
a is the length of the motor
φ3.4×7.5+1.8
~60
16.9
＜20
70
54.58
1250
6000
27.18×5.72×4.23
214-217.5
φ3.5×10
75
16.59
＜20
80
64.6
1250
6000
25.382×5.802×4.83
270
φ3.5×9
90-95
16.5
＜15
130
94
2000
6000
28.521×5.55×5.6
256.3
φ3.8×8.5+3.5
~90
15.5
＜20
100
89.4
1600
6000
32.504×6.77×6.03
305.6
φ4.8×8.5+3.5
150
15
＜20
150
89.4
2800
21.739×6.99×9.00
310.7
φ4.6×10+3.5
190
15
＜25
190
157
3550
23.599×6.96×4.63
352
φ4.6×9.5+3.5
185
15.2
＜25
175-180
148
3550
6000
22.939×5.239×7.55
293
φ4.6×14
185-220
15
210
185
4200
23.2×11.934×6.37
310
As a trustworthy and reliable heavy equipment manufacturers, we provide you with cement ball mill.
