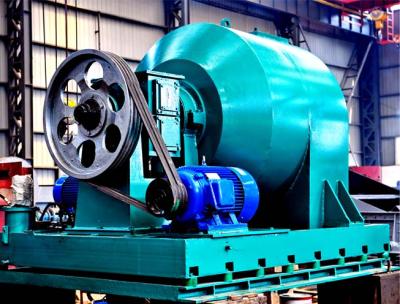

Horizontal Centrifuge Machine
-
TWZ series horizontal vibratory centrifuge belongs to the centrifugal dewatering machine, the series of horizontal centrifuge is mainly used for dehydration of fine and medium coal (0.5 to 26mm), it can also be used for other similar materials dehydration.
Structural Features of Horizontal Centrifuge Machine
The horizontal vibratory centrifuge made the material separated by solid liquid on a high-speed rotating screen, a vibrating power is attached to the material on the screen by the excitation system to realize the solid-liquid separation with automatic unloading. The TWZ series has many advantages, including high production, small crushing degree, long life period of screen, stable, convenient to fix, simple structure, low noise, high reliability and low cost.
Main Features of Horizontal Centrifuge Machine
Working Principle of Horizontal Centrifuge Machine
Materials entered into the bottom of the screen basket through a feed-in tube with an enamel and screen base, materials within the screen barrier subjected to centrifugal force and closed to the screen surface. Under the effect of vibration, the material layer moved toward large end of screen basket evenly, the dehydrated material was thrown around the screen basket, falling into a discharge port at the bottom of the shell and discharged. The moisture in the material through the material layer and the sieve seam was thrown around the shell under the action of centrifugal force, then along the shell wall to the drain outlet.
Technical Performance of Horizontal Centrifuge Machine
Basic Parameters
Unit
Model
TWZ850
TWZ10A
TWZ1150
TWZ1300
TWZ1400
TWZ1500
Feed Size
mm
≤50
0-25
0.5-50
0-50
≤50
0.5-50
Processing Capacity
t/h
30-50
50-100
100-150
180-250
200-300
250-350
Product Moisture
%
44329
Large Diameter of Screen
mm
850
1000
1150
1300
1400
1500
Size of Screen Cut
mm
0.25，0.3，0.35，0.5
Vibration Frequency
Hz
25
255
25
25
25
25
Double-Amplitude
mm
66292
66292
66292
66292
66292
66292
Power of Main Motor
Kw
15
22
37.5
45
55
75
Power of Vibration Motor
Kw
4
5.5
7.5
7.5
11
15
Power of Oil Pump Motor
Kw
0.37
0.37
0.55
0.55
0.55
0.55
Size
Length
mm
2060
2150
2800
2700
3100
3170
Width
mm
1510
1875
1930
2260
3090
2975
High
mm
1625
1765
1930
2245
2295
2400
Weight
kg
2500
2620
5527
6500
9200
10000
